Product Summary

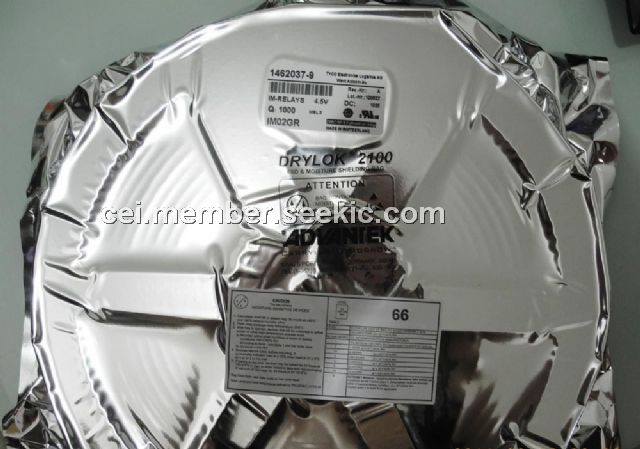

The IM02GR is a IM relay.

Parametrics

IM02GR absolute maximum ratings: (absolute maximum ratings: (1)Limiting continuous current at max. ambient temperature: 2 A; (2)Maximum switching current: 2 A; (3)Maximum swichting voltage: 220 Vdc to 250 Vac; (4)Maximum switching capacity: 60 W, 62.5 VA; (5)Thermoelectric potential < 10 mV; (6)Initial contact resistance / measuring condition: 10 mA / 20 mV< 50 mW.

Features

IM02GR features: (1)Telecom/signal relay (dry circuit, test access, ringing); (2)Slim line10 x 6 mm, 0.39 x 0.24 inch; (3)Low profile 5.65 mm, 0.222 inch; (4)Minimum board-space 60 mm2; (5)Switching current 2 A; (6)2 changeover contacts (2 form C / DPDT); (7)Bifurcated contacts, gold plated; (8)High sensitivity results in low nominal power consumption; (9)High mechanical shock resistance.

Diagrams

IM02GR pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IM02GR
IM02GR
TE Connectivity / Axicom
High Frequency / RF Relays 140 MW 4.5 V 13
Data Sheet
0-1: $1.73
1-10: $1.60
10-25: $1.50
25-50: $1.36
