Product Summary

The miniSMDC050F-2 is a PolySwitch surface-mount device. The miniSMDC050F-2 is a preferred circuit protection method for computer, consumer, multimedia, portable, and automotive electronics applications. The femtoSMD series reduced the device size to a 1608mm (0603 mils) footprint, one twelfth the size of the popular miniSMD series. The applications of the miniSMDC050F-2 include computer, Portable electronics, Multimedia, Game machines, Telephony and broadband, Mobile phones, Automotive, Industrial controls, Battery.

Parametrics

miniSMDC050F-2 absolute maximum ratings: (1)24 V, 0.5 A Profile Feature Pb-Free Assembly; (2)Average ramp up rate (TsMAX toTp): 3℃/second max. Preheat; (3)Temperature min. (TsMIN): 150℃; (4)Temperature max. (TsMAX): 200℃; (5)Time (tsMIN to tsMAX): 60-120 seconds; (6)Time maintained above: Temperature (TL) 217℃; Time (tL): 60-150 seconds; (7)Peak/Classification temperature (Tp): 260℃; (8)Time within 5℃ of actual peak temperature; (9)Time (tp) 30 seconds max; (10)Ramp down rate: 3℃/second max; (11)Time 25℃ to peak temperature 8 minutes max.

Features

miniSMDC050F-2 features: (1)RoHS compliant; (2)Halogen free (refers to: Br≤900ppm, Cl≤900ppm, Br+Cl≤1500ppm); (3)Broadest range of resettable devices available in the industry; (4)Current ratings from 0.05 to 3A; (5)Voltage ratings from 6V computer and electronic applications to 60V telecom applications; (6)Agency recognition: UL, CSA, TUV; (7)Small footprint; (8)Fast time-to-trip; (9)Low resistance.

Diagrams

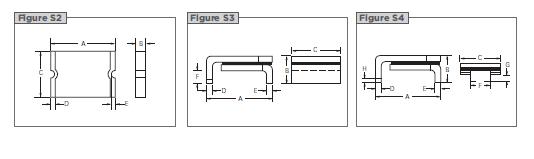

miniSMDC050F-2 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MINISMDC050F-2
MINISMDC050F-2
TE Connectivity / Raychem
PTC Resettable Fuses .50A 24V 100A Imax
Data Sheet
0-1: $0.19
1-10: $0.17
10-100: $0.15
100-500: $0.12
