Product Summary

Designer’s Kit C329 contains three of each part
Core material Ferrite
Terminations RoHS compliant tin-silver-copper over silverplatinum-
glass frit. Other terminations available at additional cost.
Weight 0.37 – 0.43 g
Ambient temperature –40°C to +85°C
Storage temperature Component: –40°C to +85°C.
Packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF) 16,666,667 hours

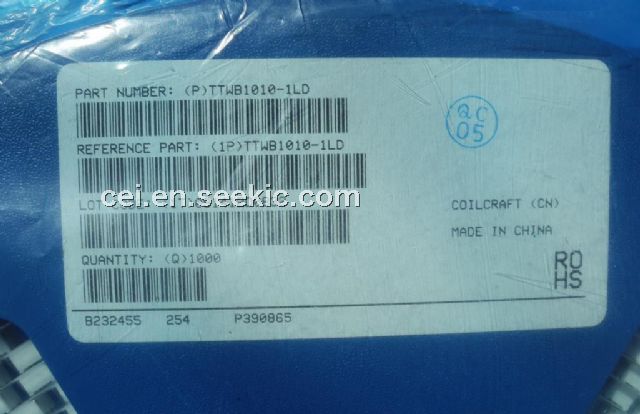

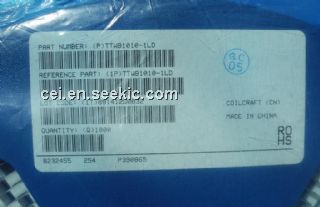

Packaging 1000 per 13″ reel; Plastic tape: 16 mm wide, 0.34 mm
thick, 12 mm pocket spacing, 4.83 mm pocket depth
PCB washing Only pure water or alcohol recommended
