Product Summary

1. Low Profile: 1.9mm or 2.4mm Nom. Mated Height
Height from the circuit board is 2.0mm or 2.5mm maximum
when a plug (right angle) is mated to a receptacle, which ranks
with world’s smallest class.
2.Extremely Small Occupied Mounting Area
In comparison with our SMT coaxial connectors E.FL series, the
receptacle provides a reduction of approximately 18% of
occupied mounting surface, which is only 7.7mm2.
3.Light Weight
One of the world’s lightest coaxial connectors.
Receptacle: 15.7mg
4.Applicable Up to 6 GHz Frequency
To meet the frequency requirements of a wide variety of
miniature equipment, these connectors offer high frequency
performance from DC to 6 GHz.
5.Board placement with automatic equipment
Supplied on tape-and-reel packaging.
6.Use of Ultra-fine Teflon Cable
From among the types of applicable cable, dia. 0.81mm(single
shielded) ultra-fine Teflon coaxial cable has been made a
standard specification in construction area.
Refer to the following pages for different cable types.
7.Simple Removal of Connector
The extraction jig permits simple removal of connectors.
8.User Friendly Mating Operation
Tactile lock feeling ensures engagement even with this small
size.

Features



Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

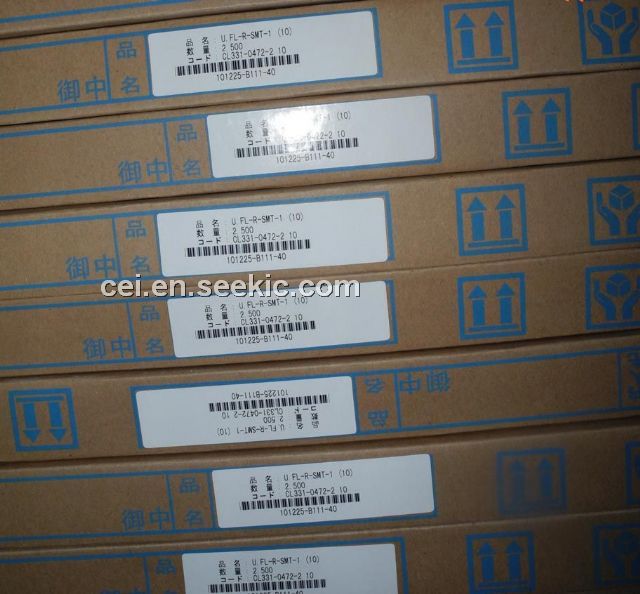

U.FL-R-SMT-1(10)
U.FL-R-SMT-1(10)

Hirose Connector

RF Connectors U.FL RECEPTACLE SMT GLD REEL

Data Sheet

0-1: $0.92
1-10: $0.67
10-50: $0.61
50-100: $0.54
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
U.FL.2LP-068N2T-A-(200)
U.FL.2LP-068N2T-A-(200)

Hirose Connector

RF Cable Assemblies DOUBLE END COAX CBL BLK 1.13MM DIAMETER

Data Sheet

0-100: $2.62
100-200: $2.18
200-500: $2.07
U.FL-2LP(V)-04N1-A-(100)
U.FL-2LP(V)-04N1-A-(100)

Hirose Connector

RF Cable Assemblies U.FL TO U.FL M ASBLY 100MM .081DIA WHITE

Data Sheet

0-1: $4.09
1-10: $3.46
10-50: $2.91
50-100: $2.59
U.FL-2LP(V)-04N1-A-(1000)
U.FL-2LP(V)-04N1-A-(1000)


CABLE ASSEM UFL-UFL 1000MM 0.81

Data Sheet

0-1: $5.11
1-10: $4.44
10-50: $4.00
50-100: $3.55
100-250: $2.95
250-500: $2.83
500-1000: $2.72
U.FL-2LP(V)-04N1-A-(160)
U.FL-2LP(V)-04N1-A-(160)

Hirose Connector

RF Cable Assemblies U.FL TO U.FL M ASBLY 160MM .081DIA WHITE

Data Sheet

0-1: $4.18
1-10: $3.53
10-50: $2.97
50-100: $2.65
U.FL-2LP(V)-04N1-A-(35)
U.FL-2LP(V)-04N1-A-(35)

Hirose Connector

RF Cable Assemblies U.FL TO U.FL M ASBLY 35MM .081DIA WHITE

Data Sheet

0-1: $4.52
1-10: $3.51
10-50: $2.81
50-100: $2.26
U.FL-2LP(V)-04N1-A-(40)
U.FL-2LP(V)-04N1-A-(40)

Hirose Connector

RF Cable Assemblies U.FL TO U.FL M ASBLY 40MM .081DIA WHITE

Data Sheet

0-1: $4.52
1-10: $3.51
10-50: $2.81
50-100: $2.26
